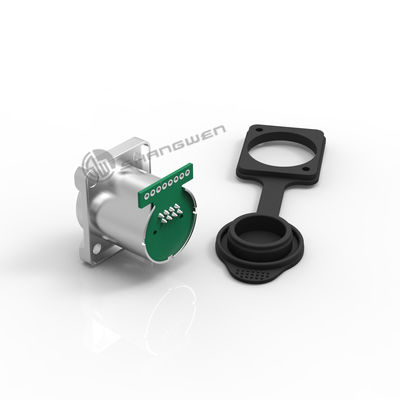

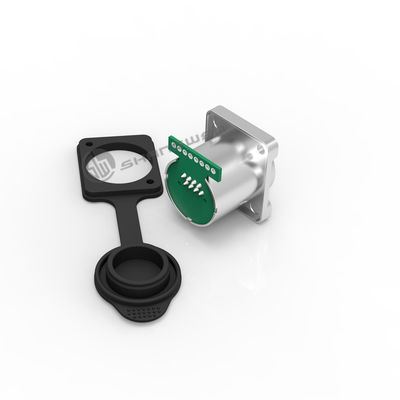

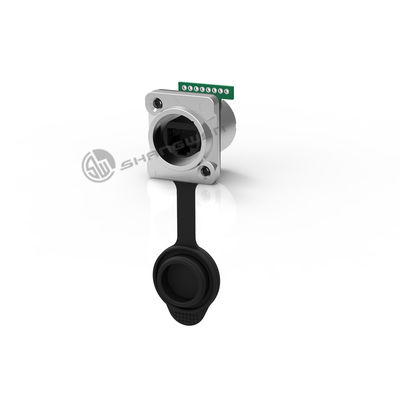

Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female

  • Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female
  • Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female
  • Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female
  • Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female
Place of Origin Guangdong, China
Фирменное наименование SHANGWEN
Model Number SW8XLB-D-N
Minimum Order Quantity 5 pieces
Цена CN¥17.94-27.98/pieces

Свяжитесь я бесплатно образцы и талоны.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Type RJ45 socket Application Ethernet
Gender Female Industrial electronics accessories
Выделить

PCB Board Female Connectors

,

Outdoor Waterproof Female Connectors

,

Ethernet D Style Signal Sockets
Оставьте сообщение
Характер продукции
Products Description
Signal connector series-RJ45 connector（Metal button upgrade model）
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 0
Model：SW8XLB（outdoor use）
*The rear end is single row type, IP65*

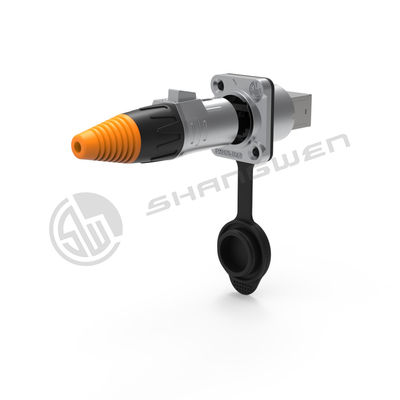

☑Can be equipped with SW8MC-03 or any standard RJ45 connector, one-hand operation, one key plug and unplug
☑D style with uniform metal flange, standard D mounting size
☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
☑D style, can be mounted from front or rear panel
☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached,
which can fully meet the durable and stable signal transmission under harsh outdoor conditions
☑All-metal housing with waterproof rear end
☑The back-end can be flexibly modified according to actual requirements ☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 1
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 2
1. Electrical parameters
Contact resistance
＜10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
＞1000
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D
3. Material and environmental parameters
Shell
Zinc diecast (ZnAl4Cu1)
Contacts
Bronze
Socket
PBT
Contact surface
Au
Shell surface
Pearl Cr
Temperature range
-30℃to +80℃
4.Size reference (unit /mm)
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 3
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 4
5.Internal structure reference
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 5
6. Installation instructions with SW8MC-03 plugs
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 6
Application area
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 7
Company Information
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 8
Patent & Certification
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 9
Exhibition activities
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 10
Packaging reference
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 11
Payment and logistics
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 12
FAQ
Outdoor 8 Pin Rj45 Waterproof Female Connectors Ethernet D Style Signal Sockets 8P8C RJ45 Panel Connector PCB Board Female 13
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
